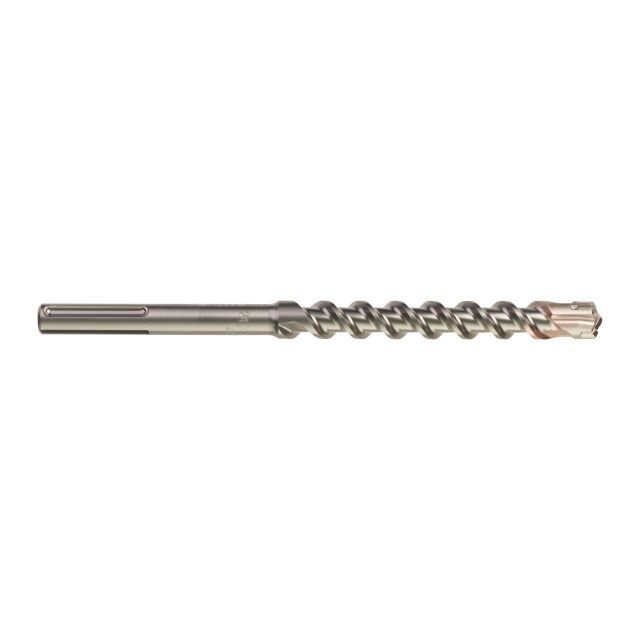

MILWAUKEE CONCRETE DRILL BIT FOR USE WITH COMBI HAMMERS 5KG AND ABOVE SDS-MAX|24X320

Basic Information

• Diameter (MM): 24
• Pack Quantity: 1
• Total Length (MM): 320
• Working Length (MM): 200
• Article Number: 4932352772

Product Description

• Large carbide tip with patented rebar chamfers. Ensures lower vibration and optimized drilling performance when hitting reinforced steel, resulting in a longer lifetime.
• Especially developed robust head geometry with optimum 4 x 90° symmetry of carbide tip. Reduces jamming up when hitting reinforcing steel.
• Centering point with 130° point angle. Enables easy spot drilling with pinpoint accuracy and ensures optimum guidance during drilling.
• Big, robust secondary cutter with dynamic, curved cutting edge. Supports the primary cutter for faster drilling.
• Shorter spiral windings for fastertransport of drilling dust from the head to the flute, resulting in less wear and heat build-up at the tip.
• Innovative, unique carbide tip with more carbide on all diameters and extra carbide on ? > 32 mm.
• Wear mark on both sides of the primary cutter guarantees diameter accuracy for anchor fittings and serves as a lifetime indicator in warranty cases.
• Patented reinforced flute geometry lowers vibrationsfor smoother drilling, stronger flute means fewer breakages, and better transfer of hammer energy to the tip.
• Deep flute shoulders for high-volume dust removal, optimum drilling speed, and reduced wear and heat build-up.
• Low vibration drilling performance for comfortable drilling and less stress on both the operator and the machine.
• Special surface treatment with shot blasting provides a smooth surface,densifies the surface structure, and makes the bit more wear-resistant.
• PGM conformity guarantees precise holes for anchor fitting over the entire lifetime of the drill bit.
