| PEGLER | |
| From [1 IN] to [4 IN] | |
| PG103047PG103047 |
Product Details
- DN: DN15
- Connection: ½
- ISO7-1 Rc (taper): 103007
- ANSI (NTP) (taper): 103047
- ISO7-Rc (Lockshield): 103057
- Total (kg): 0.32
- Cv: 16.4
- Kv: 14
- Article Number: PG103047

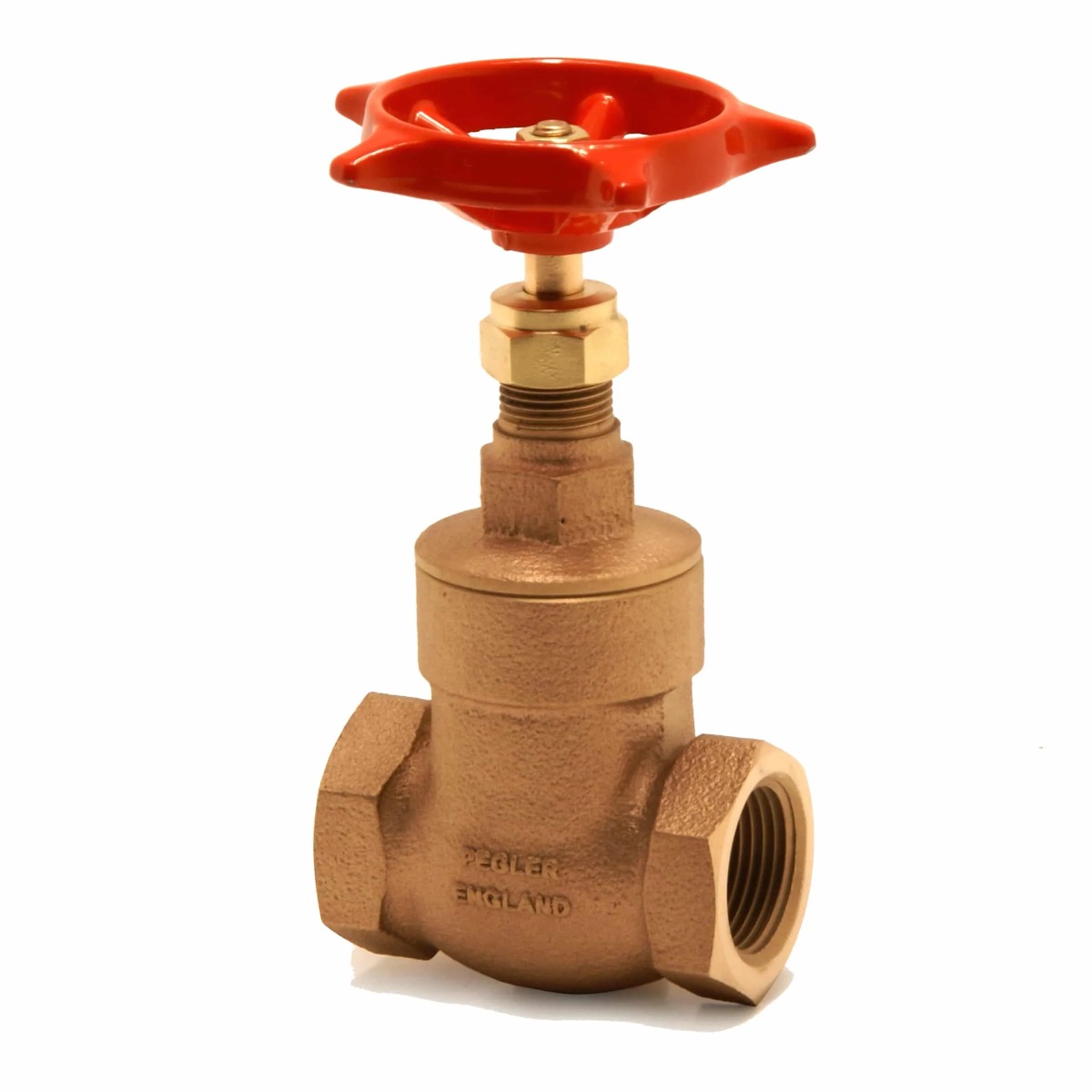

Product Description
- BS5154 PN20 series B
- Non-rising stem
- High quality lubricated packing
- 1?2” to 4” sizes
- Bronze (gunmetal) wedge
- Can be re-packed under pressure
- Bronze (gunmetal) body
- ISO7-1Rc taper thread BS EN 10226
- ANSI (NPT) American taper thread(AT)
- BS2779 parallel thread (PT)
| PEGLER | |
| From [1 1/2 IN] to [4 IN] | |
| PG203048PG203048 |
Product Details
- DN: DN20
- Connection: 3/4
- ISO7-1 Rc (Taper) Code: 203008
- ANSI (NPT) (Taper) Code: 203028
- ISO 288 (PT) Code: 203048
- ISO7-Rc (Lockshield) Code: 203068
- Total (kg): 0.45
- Cv: 32
- Kv: 32
- Article Number: PG203048
Product Description
- BS5154 PN20 series B
- Non-rising stem
- High-quality lubricated packing
- 1/2” to 4” sizes
- Solid brass wedge
- Can be re-packed under pressure
- Forged brass body
- ISO7-1Rc taper thread BS EN 10226
- ANSI (NPT) American taper thread (AT)
- BS2779 parallel thread (PT)
| PEGLER | |
| 28 MM | |
| PG38300PG38300 |
Product Details
- Color: Copper
- Materials: Copper (CW024A - UNS C12200)
- Shape: Bend (90º)
- Connection Type: Press (M)
- Sealing: EPDM
- Item: VSH XPress Copper elbow 90° FF 28
- Item Group: S12 - VSH XPress Copper elbow 90° (2 x press)
- Size: 28
- Weight: 0.12 kg
- Dimensions: 35x75x75 mm
- Max Operating Pressure (Liquid):16 bar
- Min. Medium Temperature: -20 °C
- Max Medium Temperature: 110 °C
- Peak Medium Temperature: 135 °C
- Article Number: 38300
| PEGLER | |
| 22 MM | |
| PG38460PG38460 |
Product Details
- Color: Copper
- Materials: Copper (CW024A (UNS C12200))
- Shape: T-piece (90º)
- Connection Type: Press (M), Press (M)
- Sealing: EPDM
- Item Group: S24 - VSH XPress Copper T-piece (3 x press)
- Size: 22
- Weight: 0.13 kg
- Dimensions: 30x53x73 mm
- Max Operating Pressure (Liquid): 16 bar
- Min. Medium Temperature: -20 °C
- Max Medium Temperature: 110 °C
- Peak Medium Temperature: 135 °C
- Article Number: 38460
| PEGLER | |
| 22 MM X 3/4 IN | |
| PG38171PG38171 |
Product Details
- Color: Copper
- Materials: Bronze (EN CC499K)
- Shape: Straight
- Connection Type: Tube end, R - male thread gas conical (BSPT)
- Item: VSH XPressCopper straight connector ØM 22xR3/4
- Item Group: S8 - VSH XPress Copper straight connector (male x male thread)
- Size: 22xR3/4
- Weight: 0.08 kg
- Dimensions: 25x25x50 mm
- Max Operating Pressure (Liquid): 16 bar
- Min. Medium Temperature: -20 °C
- Max Medium Temperature: 110 °C
- Peak Medium Temperature: 135 °C
- Article Number: 38171
| PEGLER | |
| 22 MM X 1 IN | |
| PG38172PG38172 |
Product Details
- Color: Copper
- Materials: Bronze (EN CC499K)
- Shape: Straight
- Connection Type: Tube end, R - male thread gas conical (BSPT)
- Item: VSH XPressCopper straight connector ØM 28xR1
- Item Group: S8 - VSH XPress Copper straight connector (male x male thread)
- Size: 28xR1
- Weight: 0.12 kg
- Dimensions: 30x35x60 mm
- Max Operating Pressure (Liquid): 16 bar
- Min. Medium Temperature: -20 °C
- Max Medium Temperature: 110 °C
- Peak Medium Temperature: 135 °C
- Article Number: 38172
| PEGLER | |
| 22 MM X 1/2 IN | |
| PG38175PG38175 |
Product Details
- Color: Copper
- Materials: Bronze (EN CC499K)
- Shape: Straight, Reducer
- Connection Type: Tube end, R - male thread gas conical (BSPT)
- Item: VSH XPress Copper straight connector ØM 22xR1/2
- Item Group: S8 - VSH XPress Copper straight connector (male x male thread)
- Size: 22xR1/2
- Weight: 0.07 kg
- Dimensions: 28x28x50 mm
- Max Operating Pressure (Liquid): 16 bar
- Min. Medium Temperature: -20 °C
- Max Medium Temperature: 110 °C
- Peak Medium Temperature: 135 °C
- Article Number: 38175
| PEGLER | |
| 35 MM | |
| PG38032PG38032 |
Product Details
- Color: Copper
- Materials: Copper (CW024A (UNS C12200))
- Shape: Straight
- Connection Type: Press (M)
- Sealing: EPDM
- Size: 35
- Weight: 0.09 kg
- Dimensions: 43x43x53 mm
- Max Operating Pressure (Liquid): 16 bar
- Min. Medium Temperature: -20 °C
- Max Medium Temperature: 110 °C
- Peak Medium Temperature: 135 °C
- Article Number: 38032
| PEGLER | |
| From [1/2 IN] to [9/16 IN] | |
| PG596043PG596043 |
Product Details
- Range (Float Size): 10''
- Size: 9/16'' W
- Weight: 0.098
- Material: Brass
- Article Number: 596043
| PEGLER | |
| From [1 IN] to [3/4 IN] | |
| PG10110PG10110 |
Product Details
- DN: DN15
- Connection: ½
- ISO 288 (PT)*: 101070
- ISO 228 (PT)LS*: 101078
- Total (kg): 0.26
- Cv: 16.4
- Kv: 14
- Article Number: PG10110
Product Description
- BS5154 PN20 series B
- Non-rising stem
- High quality lubricated packing
- 1?2” to 3” sizes
- Solid gunmetal wedge
- Can be re-packed under pressure
- Bronze (gunmetal) body
- ISO7-1Rc taper thread BS EN 10226
- ANSI (NPT) American taper thread (AT)
- BS2779 parallel thread (PT)
- BS21 taper thread
- All sizes PN20
| PEGLER | |
| From [1 IN] to [3/4 IN] | |
| PG126023PG126023 |
Product Details
- DN: DN15
- Connection: ½
- ISO7-1Rc (Taper) Code: 126023
- Weight (kg): 0.57
- Cv: 2.176
- Kv: 1.86
- Article Number: PG126023

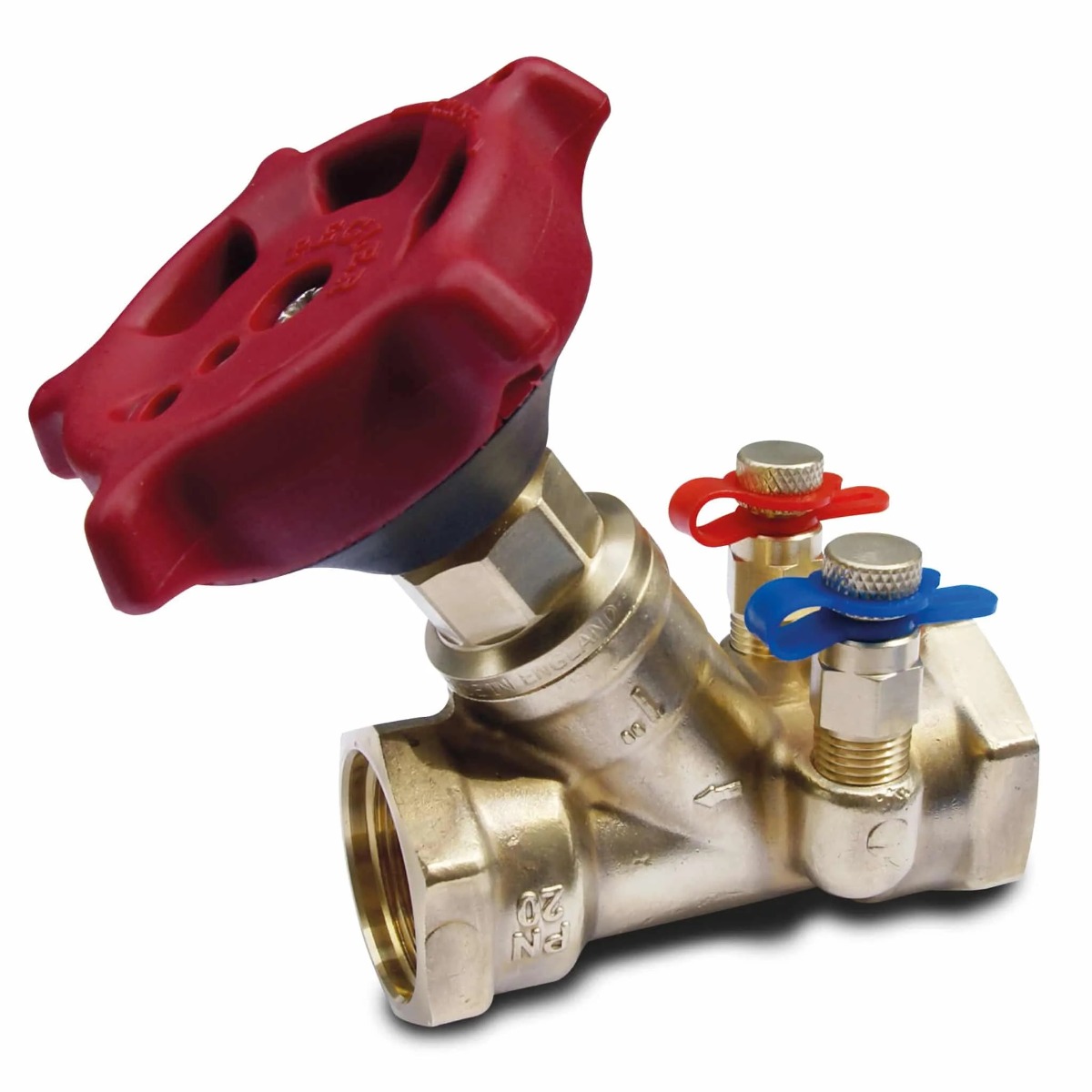

Product Description
- All sizes rated PN20
- Regulation, isolation, and flow measurement functions
- Y pattern body
- Handle position indicator
- DZR brass body
- Meets BS7350
- Includes memory stop
- Includes test points
- ISO 228G parallel thread
| PEGLER | |
| From [1 1/2 IN] to [3/4 IN] | |
| PG202052PG202052 |
Product Details
- DN: DN15
- Connection: ½
- Code: 202052
- Total Weight: 0.27 kg
- Cv: 16.4
- Kv: 14
- Article Number: PG202052
Product Description
- All sizes rated PN16
- Non-rising stem
- “O” ring gland packing seal
- 1/2” to 2” sizes
- Solid wedge
- Forged brass body
- ISO7-1Rctaper thread
- ANSI (NPT) American taper thread (AT)
- BS2779 parallel thread (PT)
