Product Details

• Hand Tools Type: Water Pump
• Color: Dark Blue
• Model Number: CPM 170
• Item Weight: 17.8 kg
• Flow Rate: up to 160 l/min (9.6 m³/h)
• Head: up to 56 m
• Body Backplate Material: Stainless steel AISI 304 (cast iron for CP 170-170M-190-200)
• Manometric Suction Lift: up to 7 m
• Liquid Temperature: between -10 °C and +90 °C
• Pumped Liquid: Clean Water
• Power (P2): 1.1 kW (1.5 HP)
• Maximum Working Pressure: 10 bar for CP 170-190-200
• Article Number: 44CI175A1

Basic Information

• Quantity Capacity: 200 L
• Patented CAD-2 Diaphragm Technology
• Stainless Steel Water Connection
• Two-Part Polyurethane, Epoxy Primed Paint Finish
• Article Number: GCB200LV
• Max Operating Pressure: GCB Models: 10 bar | 150 psi

Challenger™ tanks are ideally suited for a wide range of applications including:

• Booster Systems
• Well Systems
• Irrigation Systems
• Thermal Expansion
• Hydronic Heating Expansion
• Hydraulic Hammer Arresting
• Clean WaterBackwash for Ultra-Filtration Systems

Product Details

• Item Model: CM 3-3A
• Impeller: Stainless Steel
• Pump Housing: Cast Iron
• Motor Power: 1 HP
• Phases: Single
• Voltage: 220-240 V
• Mains Frequency: 50 Hz
• Article Number: 98279546

Basic Information

• Pump speed on which pump data are based: 2900 rpm
• Rated flow: 10 m³/h
• Rated head: 53.93 m
• Impellers: 4
• Code for shaft seal: AVBE
• Approvals: EAC
• Approvals for drinking water: ACS, NSF61
• Curve tolerance: ISO9906:2012 3B
• Pump version: A
• Model: A
• Pump housing: Cast iron EN-GJL-200 ASTM A48-25A
• Impeller: Stainless steel EN 1.4301 AISI 304
• Material code: A
• Code for rubber: E
• Range of ambient temperature: -20 .. 55 °C
• Maximum operating pressure: 10 bar
• Max pressure at stated temp: 10 bar / 40 °C
• Type of connection: Rp
• Size of inlet connection: 1 1/2 inch
• Size of outlet connection: 1 1/2 inch
• Outlet position: 12
• Connect code: R
• Pumped liquid: Water
• Liquid temperature range: -20 .. 40 °C
• Selected liquid temperature: 20 °C
• Density: 998.2 kg/m³
• Motor standard: IEC
• Frame size: 100LA
• IE efficiency class: IE2
• Rated power - P2: 3.2 kW
• Mains frequency: 50 Hz
• Suitable for 50/60 Hz: N
• Rated voltage: 3 x 220-240D/380-415Y V
• Service factor: 1.00
• Rated current: 11,8-11,0/6,75-6,40 A
• Starting current: 800-880 %
• Rated speed: 2900-2920 rpm
• Enclosure class (IEC 34-5): IP55
• Insulation class (IEC 85): F
• Built-in motor protection: PTC
• Cable included (Yes/No): N
• Article Number: 96935485

Product Description

CM is a reliable, quiet and compact horizontal end-suction pump. The modular pump design makes it easy to make customised solutions. CM is available in cast iron and stainless steel.

Product Details

• Hand Tools Type: Water Pump
• Color: Dark Blue
• Model Number: CPM 158
• Item Weight: 12.1 kg
• Flow Rate: up to 160 l/min (9.6 m³/h)
• Head: up to 56 m
• Body Backplate Material: Stainless Steel AISI 304
• Manometric Suction Lift: up to 7 m
• Liquid Temperature: between -10 °C and +90 °C
• Pumped Liquid: Clean Water
• Power (P2): 0.75 kW (1 HP)
• Maximum Working Pressure: -6 bar for CP 100-130-132-150-158
• Article Number: 44CI16A1J5D

Product Details

• Hand Tools Type: Water Pump
• Color: Dark Blue
• Model Number: HFM 5AM
• Item Weight: 21.6 kg
• Flow Rate: up to 700 l/min (42 m³/h)
• Head: up to 39 m
• Body Backplate Material: Stainless steel AISI 304 (cast iron for HF 5M-70)
• Manometric Suction Lift: up to 7 m
• Liquid Temperature: between -10 °C and +90 °C
• PumpedLiquid: Clean Water
• Power (P2): 1.5 kW (2 HP)
• Maximum Working Pressure: –10 bar for HF 5M-70
• Article Number: 47HF5M2A7A1

Product Details

• Product Name: Circulation Pump 25-60 180
• Nominal Voltage: 230V
• Installation Length: 180mm
• Diameter / Nominal Size: 1 1/2 / DN 25 1
• Media Temperature: +2°C to +110°C
• Operating Pressure: 10 bar
• Degree of Protection: IP44
• Overall Length: 180mm
• Phase: 1
• Housing Material: Cast Iron
• Article Number: 96281489

Product Details

• Item Model: CM 5-5A
• Impeller: Stainless Steel
• Pump Housing: Cast Iron
• Motor Power: 2 HP
• Phases: Single
• Voltage: 220-240 V
• Mains Frequency: 50 Hz
• Package Dimensions: 51 x 30 x 26 cm; 15 Kilograms
• Article Number: 97900686

Product Details

• Rated Flow: 3 m³/h
• Rated Head: 27 m
• Maximum Head: 45 m
• Ambient Temperature Range: 0°C to 55°C
• Maximum Operating Pressure: PN 10 bar
• Pumped Liquid: Water
• Liquid Temperature Range: 0°C to 45°C
• Net Weight: 9.5 kg
• Power Input (P1): 550 W
• Rated Power (P2): 0.45 kW
• Article Number: 98562870

Product Details

• Liquid Type: Clean Water
• Uses: Domestic
• Applications: Liquids Transfer, Emptying Tanks, Drainage
• Typology: Submersible
• Family: Clear Water Drainage
• Flow Rate: up to 360 l/min (21.6 m³/h)
• Head: up to 14.50 m
• Liquid Temperature: up to +40 °C
• Immersion Depth:
  • 3 m for TOP 1-2-3
  • 5 m forTOP 4-5 (with a sufficiently long power cable)
• Maximum Liquid Temperature: +90 °C for a maximum of 3 minutes intermittent service
• Passage of Suspended Solids: up to Ø 10 mm
• Suction Level:
  • 14 mm above ground level for TOP 1-2-3
  • 30 mm above ground level for TOP 4-5
• Continuous Service: S1
• Article Number: 48TOP12A1

Product Details

• Color: Black
• Motor Power: 1.5 Hp
• Inlet Size: 1 1/4
• Outlet Size: 1
• Frequency: 50Hz
• Phase: Single
• Material: Cast Ironand Stainless Steel
• Power Supply: 220-240V
• F Class Installation
• Article Number: 97901003

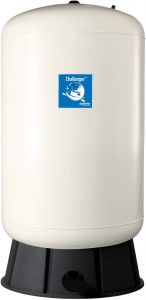

Basic Information

• Quantity Capacity: 100 L
• Patented CAD-2 Diaphragm Technology
• Stainless Steel Water Connection
• Two-Part Polyurethane, Epoxy Primed Paint Finish
• Article Number: GCB100LV
• Max Operating Pressure: GCB Models: 10 bar | 150 psi

Challenger™ tanks are ideally suited for a wide range of applications including:

• Booster Systems
• Well Systems
• Irrigation Systems
• Thermal Expansion
• Hydronic Heating Expansion
• Hydraulic Hammer Arresting
• Clean WaterBackwash for Ultra-Filtration Systems
