ARISTON WALL HUNG RESIDENTIAL HEAT PUMPS NUOS SPLIT 80 WH

Product Details

• COP (A): 2.4
• COP (B): 2.04
• Heating time (A): 02:39 hh:mm
• Min/max air temperature: -5/42°C
• Max water temperature heat pump only mode: 62/75°C
• Sound power U.I. (D): 15 dB(A)
• Sound power U.E. (D): 57 dB(A)
• Avg. electrical power consumption in heat pump mode: 510 W
• Nominal storage tank capacity: 80 l
• Max operating pressure: 8 bar
• Voltage/Max. power consumption: 220-240 V/W 1950
• Heating element power: 1200 W
• Empty weight: 32 kg
• Electrical system protection grade:IP24
• Insulation thickness: 41 mm
• Water connections diameter: 1/2 M
• Min Temperature of storage tank room: 1°C
• Heat dispersion (Pes) (B): 20 W
• Annual energy consumption (average climate) (C): 606 kWh/year
• Seasonal efficiency (C): 85%
• V40 (Qty of mixed DHWat 40°C) (C): 99 l
• Article Number: 3623242

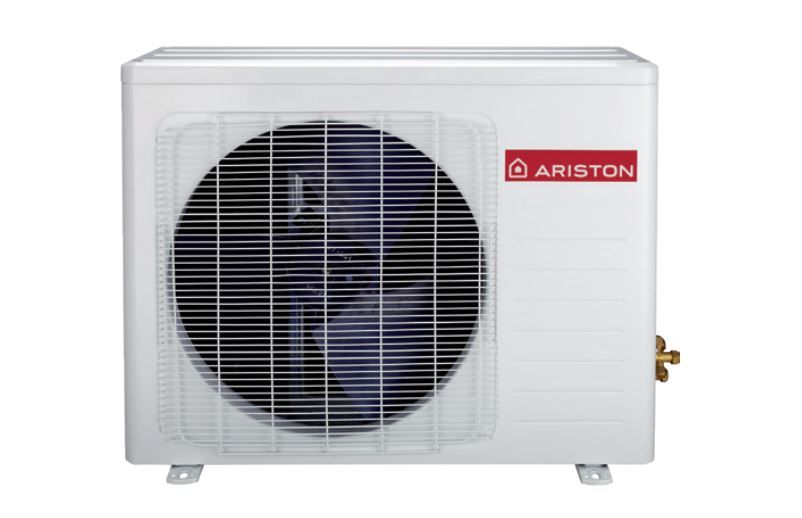

Outdoor Unit

• Refrigerant circuit connections diameter: 1/4 3/8 with bell end
• Empty weight: 27 kg
• Standard air flow rate: 1100 m³/h
• Max pressure in the refrigerating circuit (Low p side): 12 bar
• Max pressure in refrigerating circuit (High p side): 27 bar
• Electrical system protection grade: IP24

Product Description

• Condenser wrapped around titanium enamelled steel boiler, not immersed in water
• Operating range in heat pump mode with air temperature from -5 to 42°C
• Active anode Protech + magnesium anode
• Tank intended for indoor installation
3623242
