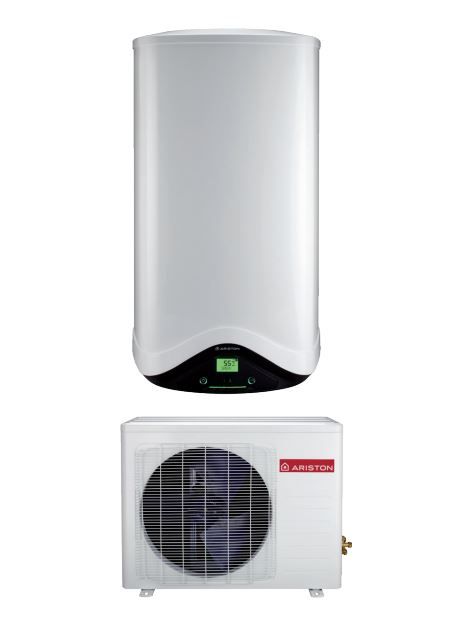

ARISTON WALL HUNG RESIDENTIAL HEAT PUMPS NUOS SPLIT 110 WH

Product Details

• COP (A): 2.37
• COP (B): 2.03
• Heating Time (A): hh:mm 3:49
• Min/Max Air Temperature: -5/42 °C
• Max Water Temperature Heat Pump Only Mode: 62/75 °C
• Sound Power U.I. (D): 15 dB(A)
• Sound Power U.E. (D): 57 dB(A)
• Average Electrical Power Consumption in Heat Pump Mode: 510 W
• Nominal Storage Tank Capacity: 110 I
• Max Operating Pressure: 8 bar
• Voltage/Max. Power Consumption: 220-240/1950 V/W
• Heating Element Power: 1200 W
• Empty Weight: 38 kg
• Electrical System Protection Grade: IP24
• Insulation Thickness: 41 mm
• Water Connections Diameter: 1/2 M
• Min Temperature of Storage Tank Room: 1 °C
• Heat Dispersion (Pes) (B): 24 W
• Annual Energy Consumption (Average Climate) (C): 604 kWh/year
• Seasonal Efficiency (C): 84.8 %
• SeasonalEfficiency: 139 I
• Article Number: 3623243

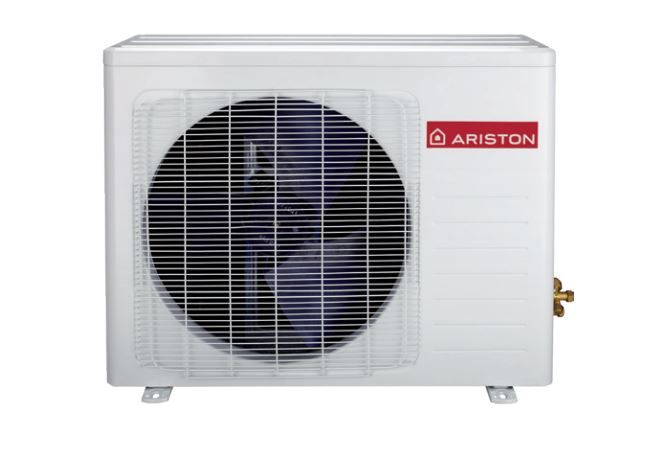

Outdoor Unit

• Refrigerant Circuit Connections Diameter: 1/4 3/8 with bell end
• Empty Weight: 27 kg
• Standard Air Flow Rate: 1100 m³/h
• Max Pressure in the Refrigerating Circuit (Low P Side): 12 bar
• Max Pressure in Refrigerating Circuit (High P Side): 27 bar
• Electrical System Protection Grade: IP24
• Max Distance Between Storage Tank and Outdoor Unit: 8 m
• Max Difference in Level Between Storage Tank and Outdoor Unit: 3 m

Product Description

• Split wall-hung heat pump for domestic hot water production
• High performance
3623243AT3623243
