ARISTON WALL HUNG RESIDENTIAL HEAT PUMP NUOS EVO A+ 80 WH

Ariston
80
AT3629056
Check availabilityCheck availability
Ariston
80







Downloads

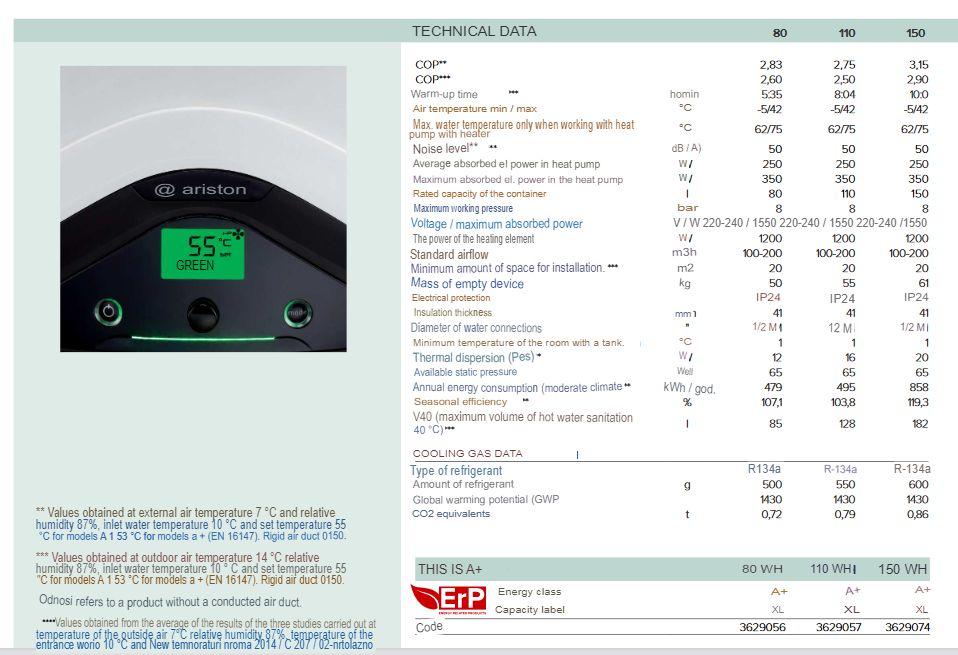

Product Details

  • COP (A): 2.83
  • COP (B): 2.6
  • Heating time (A): 4:38 hh:mm
  • Min/max air temperature: -5/42 °C
  • Max water temperature heat pump only mode: 62/75 °C
  • Sound power (D): 50 dB(A)
  • Average electrical power consumption in heat pump mode: 250 W
  • Max electrical power consumption in heat pump mode: 350 W
  • Max Qty of domestic hot water at 40°C (B): 85 I
  • Nominal storage tank capacity: 80 I
  • Max operating pressure: 8 bar
  • Voltage/Max. power consumption: 220-240 V single-phase / 1550 W
  • Heating element power: 1200 W
  • Standard air flow rate: 100-200 m³/h
  • Min volume of the installation room: 20 m³/h
  • Empty weight: 50 kg
  • Electricalsystem protection grade: IP24
  • Insulation thickness: 41 mm
  • Water connections diameter: 1/2 M
  • Min Temperature of storage tank room: 1 °C
  • Heat dispersion (Pes) (B): 12 W
  • Available static pressure: 65 Pa
  • Annual energy consumption (average climate): 479 kWh/year
  • Seasonal efficiency (C): 107.1%
  • GWP: 1430
  • CO2 equivalents: 0.543 t
  • Article Number: 3629056

Product Description

  • Top of the range wall-hung heat pump for domestic hot water production in A+ class.
  • High performances and sustainability: environmentally friendly heat pump mode to achieve 62°C.
  • Security and durability: Condenser wrapped around titanium enamelled steel boiler, not immersed in water.
  • Operating range in heat pump mode with air temperature from -5 to 42°C
