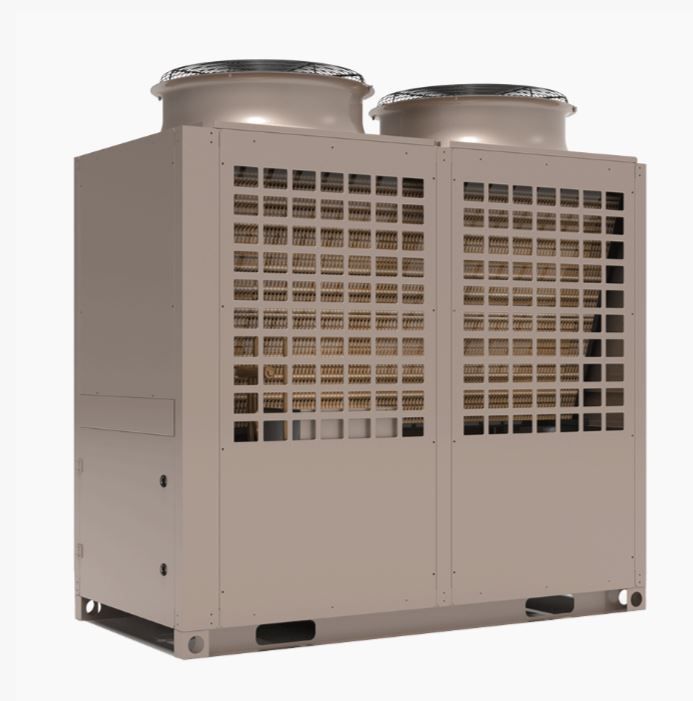

ARISTON COMMERCIAL HEAT PUMP AR-40PTP HX MT

Product Details

• Hot Water Capacity: 48 kW
• Power Input: 9.97 kW
• COP: 4.81 W/W
• Hot Water Volume: 1031L/h
• Max. Power Input: 14.3 kW
• Max. Running Current: 24.2 A
• Power Supply: 380-415V/3N-/50Hz
• Compressor Quantity: 2
• Compressor Type: Scroll
• Compressor Brand: Copeland ZW Series Heat Pump Dedicated Compressor
• Condenser: Patented Tube in Shell Heat Exchanger
=
• Evaporator: 07 mm finned Heat Exchanger
• Defrosting: By 4-Way Valve
• Controller: Multi-Function Controller
• Display: 5 Inch Colorful Touch Display
• Refrigerant: R410A
• Cabinet: Eco-Friendly Galvanized Metal
• Net Weight: 350 kg
• Gross Weight: 391 kg
• Net Dimension: 1700x800x1735 mm (L/W/H)
• Shipping Dimension: 1830x880x1900 mm (L/W/H)
• Article Number: 3629141

Product Description

• COP > 4.
• Hot water up to 60°C. Copeland Compressor.
• Patented tube in shell heat exchanger. R410a ecological refrigerant gas.
• Fan blade with special «low noise» shape.
• Electronic expansion valve.
• Friendly HMI with multi-function display.
• Pressure and temperature sensors and switches. Defrosting system thanks to a special valve.
• Over-current and over-temperature protection.
