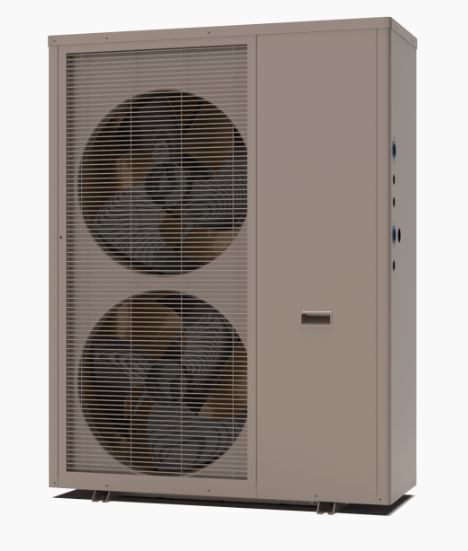

ARISTON COMMERCIAL HEAT PUMP AR-20PTP HX MT

Product Details

• Hot Water Capacity: 23 kW
• Power Input: 4.84 kW
• COP: 4.75 W/W
• Hot Water Volume: 494L/h
• Max. Power Input: 6.9 kW
• Max. Running Current: 11.5 A
• Power Supply: 380-415V/3N-/50Hz
• Compressor Quantity: 1
• Compressor Type: Scroll
• Compressor Brand: Copeland ZW Series Heat Pump Dedicated Compressor
• Throttle Device: Electronic Expansion Valve
• Fan Quantity: 2
• Fan Motor Input: 75-2 (W)
• Water Flow Volume: 4 m³/h
• Water Pressure Drop: 129 kPa
• Water Connection: 1.2 Inch
• Noise: 56 dB(A)
• Air Volume: 3340x2 m³/h
• Air Discharge Type: Horizontal
• Max. Outlet Water Temp: 60 °C
• Condenser: Patented Tube in Shell Heat Exchanger
• Operation Range: -15-43 °C
• Evaporator: 07 mmfinned Heat Exchanger
• Defrosting: By 4-Way Valve
• Controller: Multi-Function Controller
• Display: 5 Inch Colorful Touch Display
• Refrigerant: R410A
• Cabinet: Eco-Friendly Galvanized Metal
• Net Weight: 154 kg
• Gross Weight: 163 kg
• Net Dimension: 1000x395x1315 mm (L/W/H)
• Shipping Dimension: 1070x450x1445 mm (L/W/H)
• Article Number: 3629140

Product Description

• COP > 4.
• Hot water up to 60°C. Copeland Compressor.
• Patented tube in shell heat exchanger. R410a ecological refrigerant gas.
• Fan blade with special «low noise» shape.
